RichArduino V4
FPGA microcontroller with RISC-based architecture

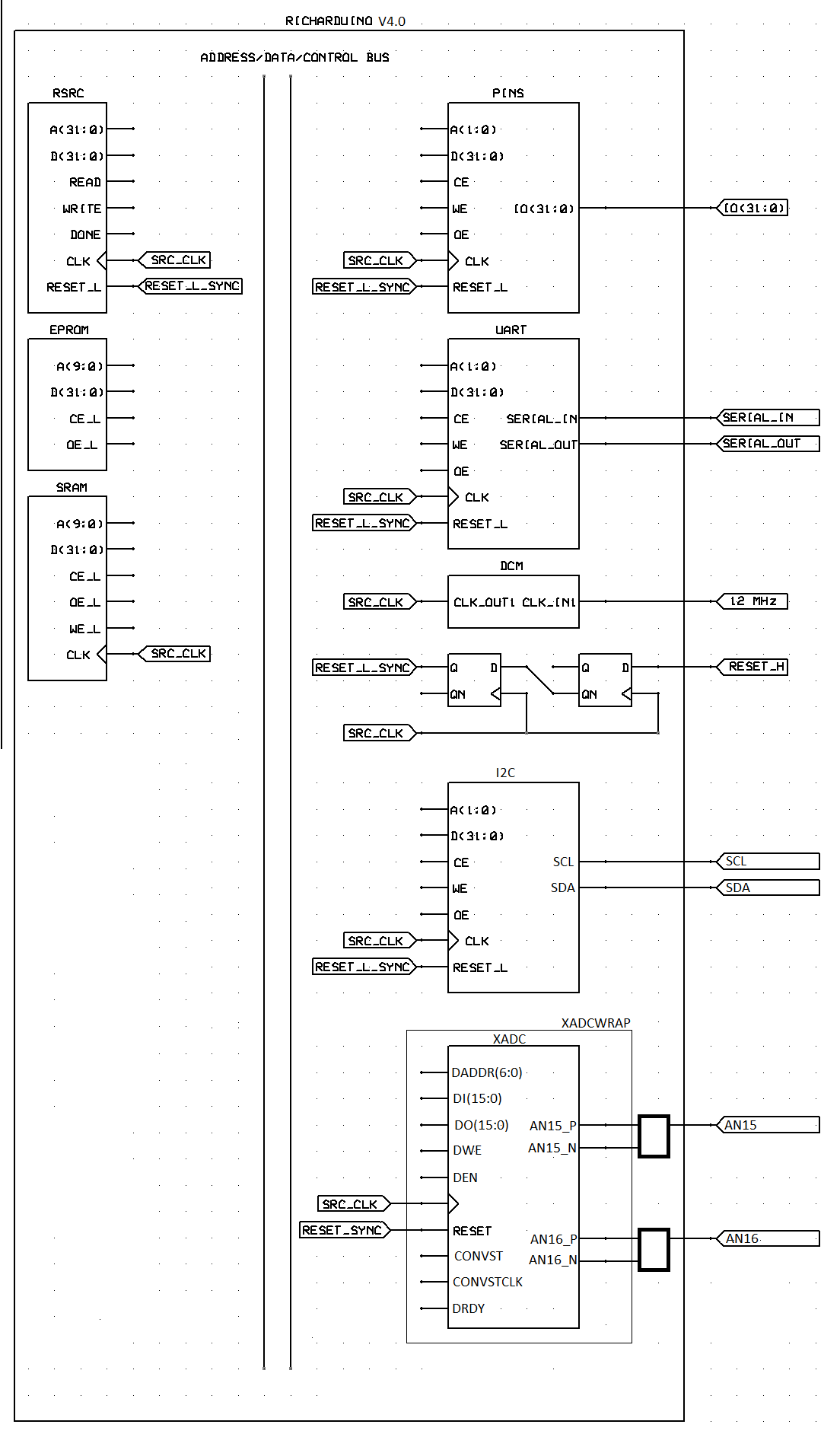

Designed and implemented I2C module and XADC wrapper for our FPGA-based microcontroller system
RichArduino V4.0
Implemented a RISC-based assembly bootloader for the microcontroller

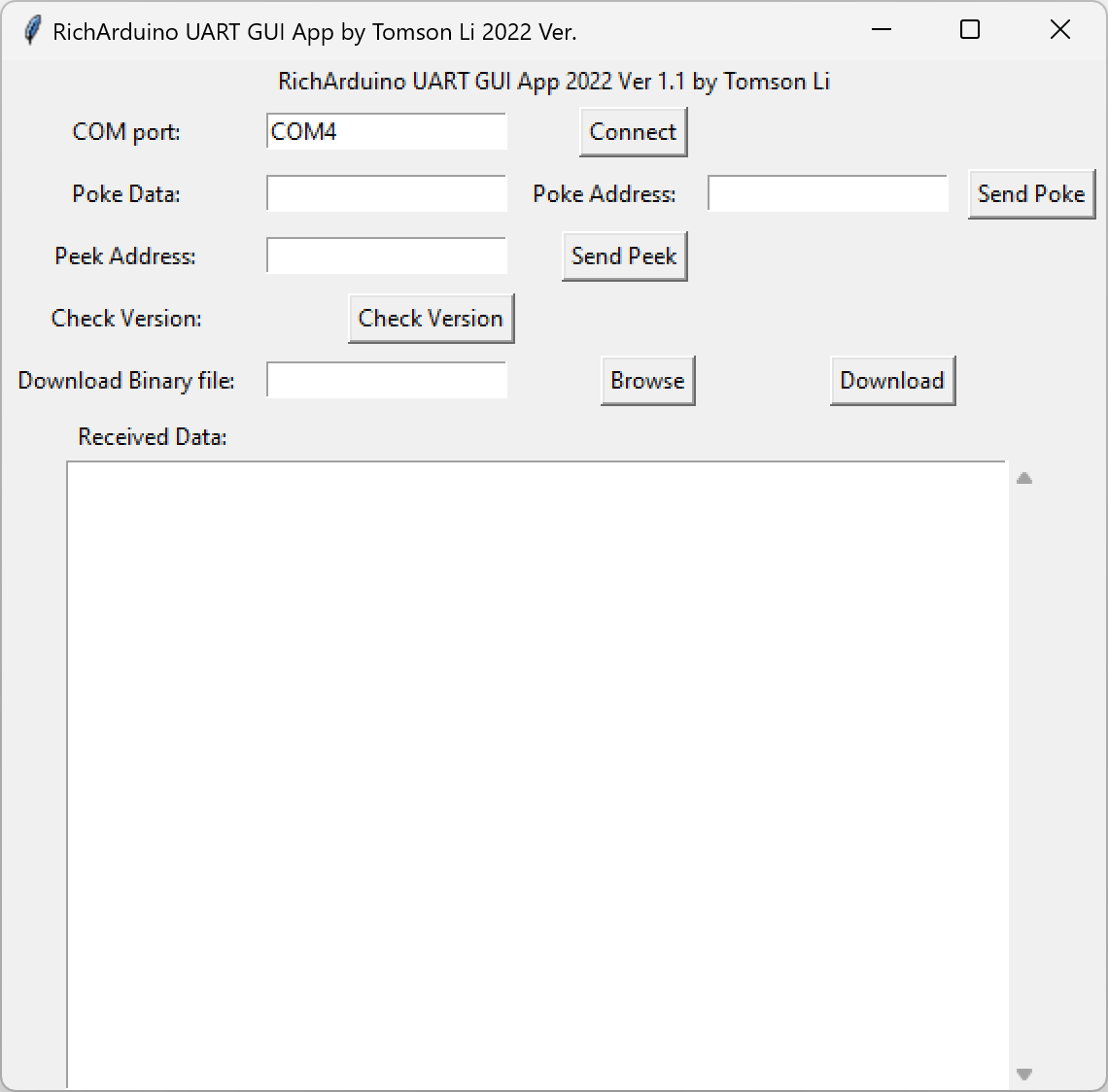

Developed a Python GUI-based UART serial connection software for debugging and uploading program

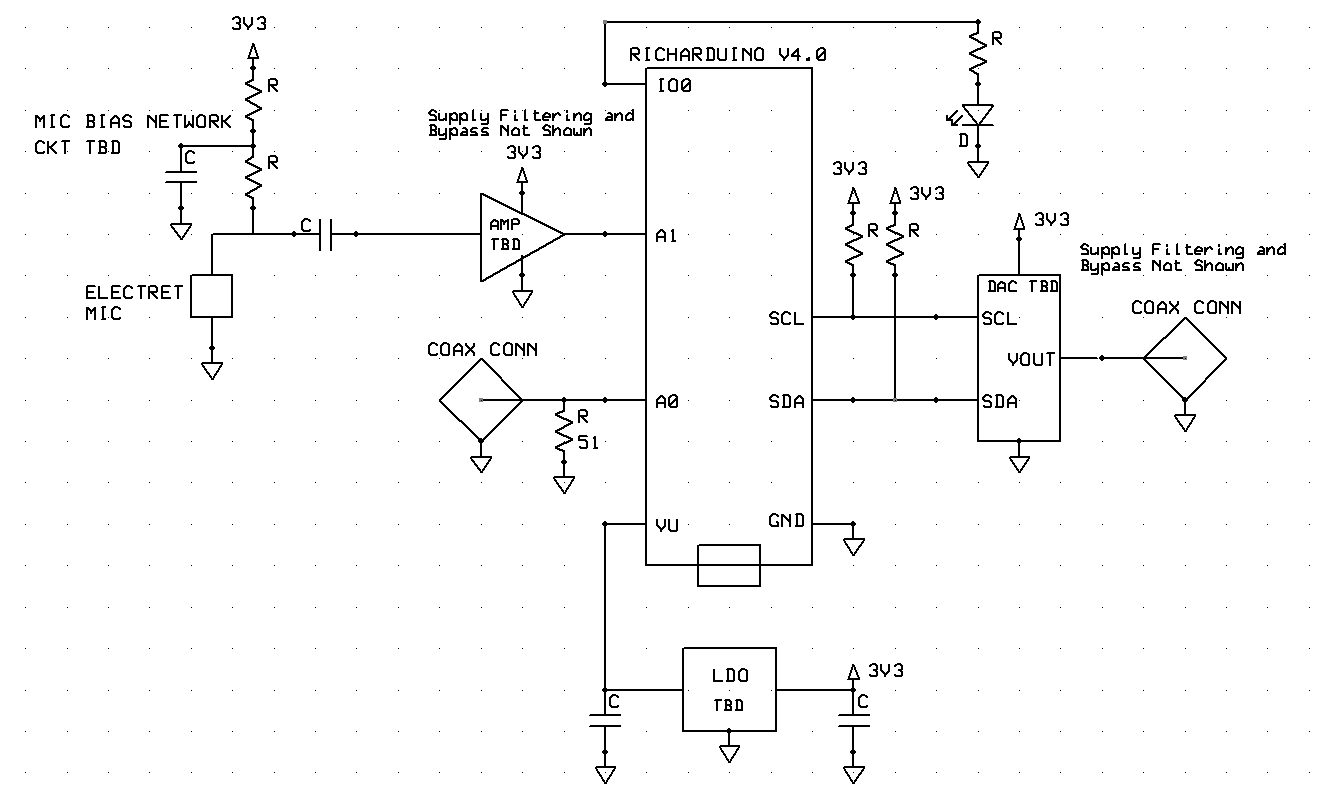

Designed an RC circuit and soldered components on the PCB shield
RichArduino V4.0 Product Demo
Developed a simple assembly program to demonstrate the functionality of the microcontroller.
Full report of the project can be accessed [here].
